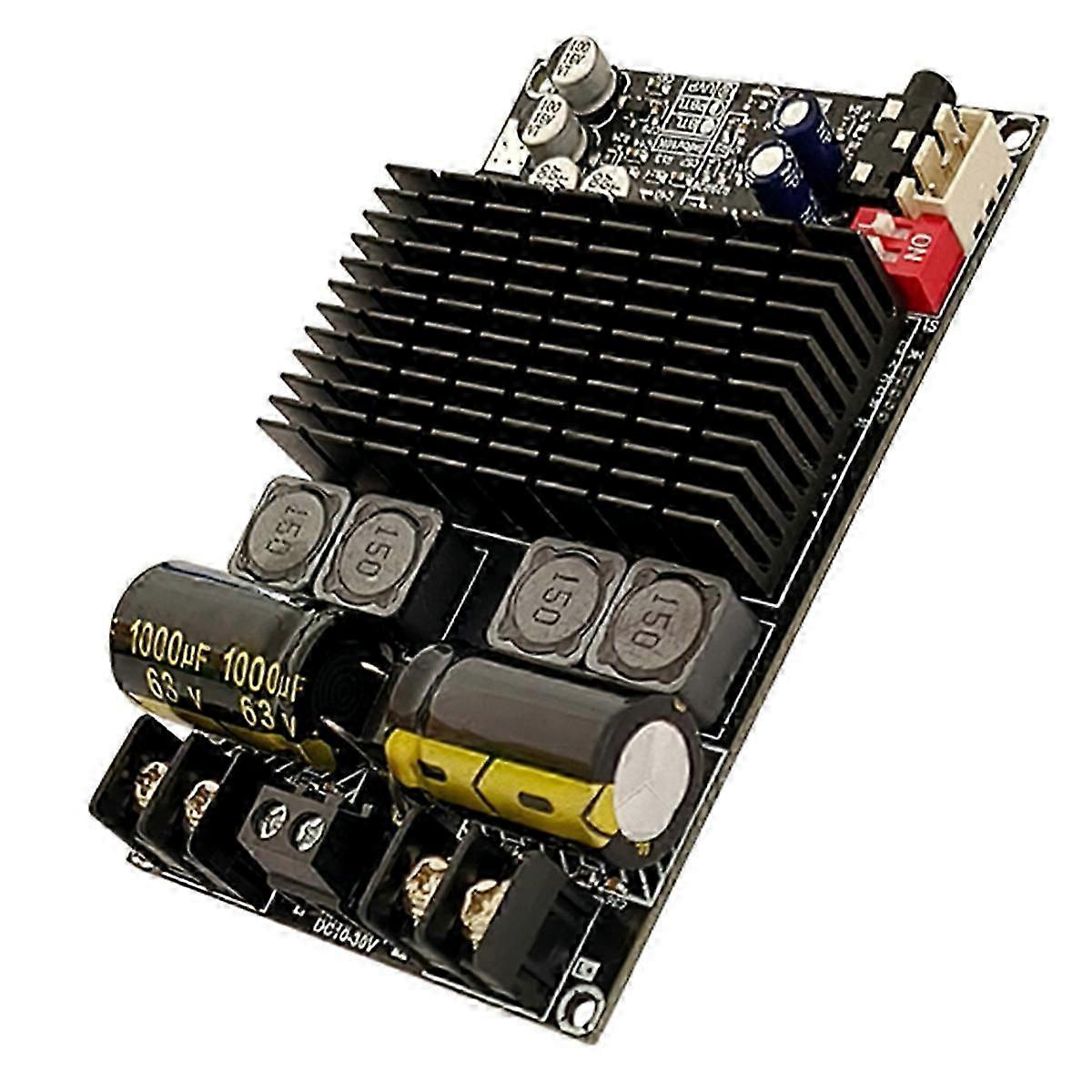

Description Product name: 100W+100W dual channel/200W single channel pure rear stage amplifier board Power amplifier chip: TPA3221 Product model: -2001 Adapted power supply: The working voltage range is 10-30VDC, with a limit of 31V. It is recommended to use a DC power supply with a voltage of 24-30V and a current of 10A or more. The higher the voltage, the greater the output power. Never connect to AC power, otherwise it burn out! Adapted speaker: 3-8 ohms, 20-100W in BTL dual channel mode; 2-8 ohms, 50-200W in PBTL mono mode Heat dissipation method: Multi tooth heat sink Gain selection: 2nd DIP switch 2nd gear selection, 28dB, 38dB Bridging method: Turn off the power first, turn the No.1 dial switch to the ON position, and the output end R+L+is short circuited in parallel for output, while R - L - is short circuited in parallel for output. Maximum power: In BTL mode,2*70W@24V 4 ,2*100W@30V 4 ;In PBTL mode, 150W@30V 3, 200W@30V 2,110W@30V 4 Protection mechanism: Input undervoltage, overheating, overcurrent, short circuit protection.Input anti reverse protection Product size: 100x65x18mm Colour:Black Material:plastic Package Contents: 1 x amplifier board Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
