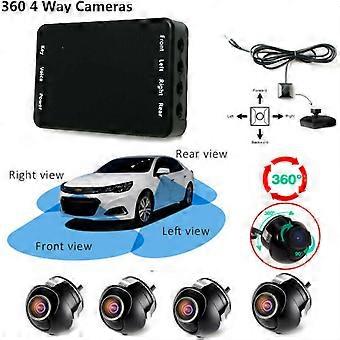

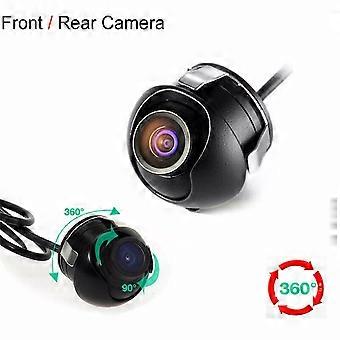

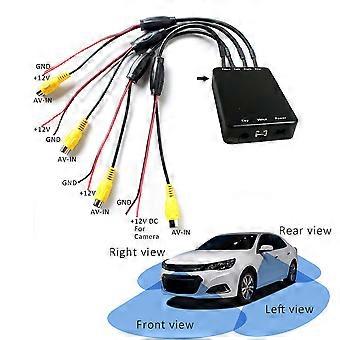

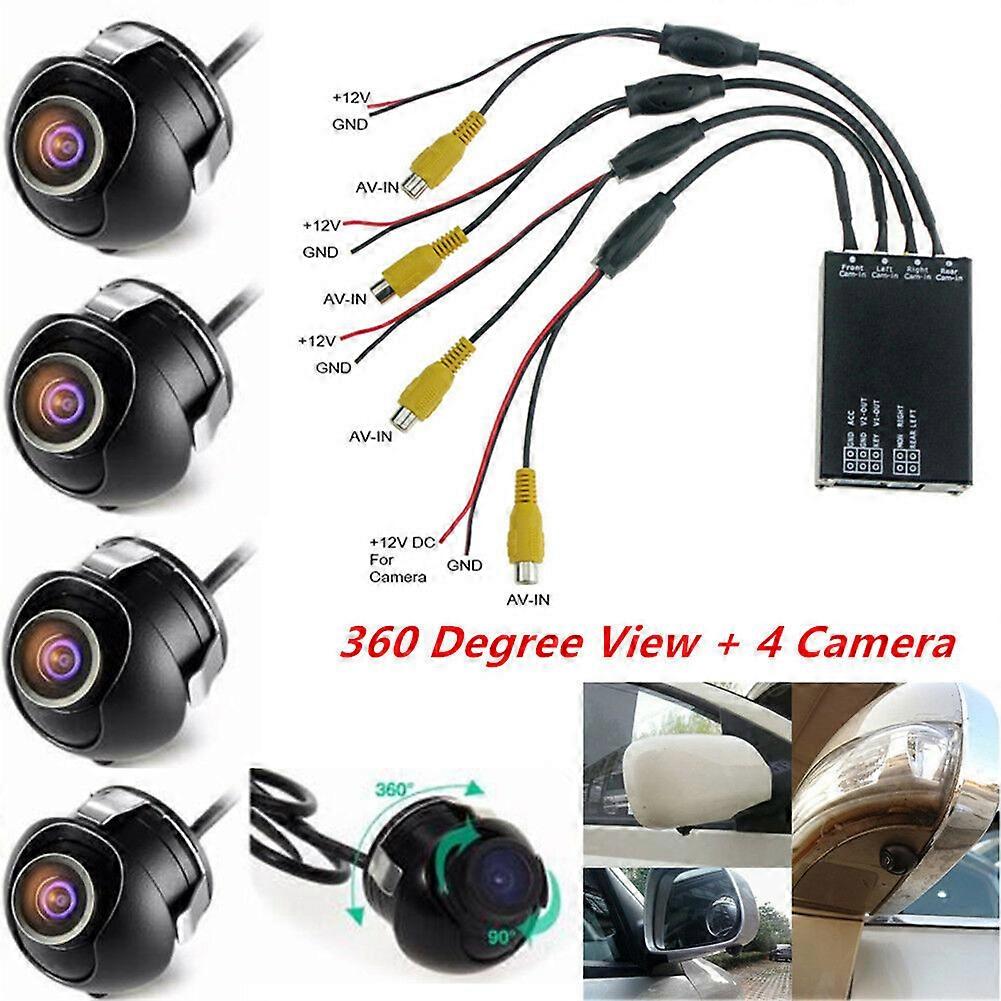

Frames Per Second:Other Origin:Mainland China Chipset Manufacturer:Other Assembly Mode:Portable Recorder Item Type:Car DVR Certification:NONE Description: *Video output: Two videos output, one for car monitor, the other for car DVR. *Front view camera power: supplied by control box system. *Rear view camera power: supplied by control box system, or could be supplied by reverse lamp power. *Left/Right side view camera power: supplied by control box system Functions: *Automatical round view when starting: When car engine starts, the system will activate the car monitor and the all the camera around one by one to check the view around for 10 seconds, then turn off. *Automatically rear view:When you pull the reverse gear (Left/Right turning no triggered), the system will activate the monitor and rear view camera till the reverse gear back, then switches to front view camera for 10 seconds then shut off. *Front view mode:The system start with front view mode as default.Front view controlled by switch(included) .Press the control switch for 2 seconds, car monitor and car front view camera will be working all the time, if no other trigger working. And then you could shut off the front view video by re-press the control switch for 2 seconds. *Side view mode:Press the control switch less than 1 second to enter Side View Mode.When you turn on the turning switch, this system will activate Monitor and Side view camera (Left/Right side view camera is controlled by Left/Right steering lamp). The monitor and camera will turn off after 1.5 seconds when steer turning is finished.Press the control switch less than 1 second again to enter Front View Mode. Trigger priority: *Right View>Left View>Back View>Front View Switch function: *Press for less than 1 second: Side View mode / Front View mode *Press for 2seconds (in Front mode): Front View always working / Front View turn off Parameters: *The system working current: Max: 50MA. (Excludes working current of cameras) *The system working power: 9-30V. (Power supply to cameras is the same as the system input voltage, in 24V vehicle, please use 24V cameras) *System signal: PAL/NTSC/SECAM *Video output: 1.0VPP/75 *Working temperature: -20~80 *Operation Temperature: -40~85 Camera: *Image Sensor: PC1099 *Optical Size: 1/3 inch *Pixel pitch: 5.0*7.4um *Effective Pixel: 720*480 *Horizontal Resolution: 580 TV Lines *Dynamic Range: >72dB *S/N Ratio: >48dB *Min. Illumination: 0.1 lux *View Angle: 170 Degree *Video Angle: 1V@75 Panoramic assist system function description: Front, rear, left and right four-way mode A. When the reverse gear is engaged, the back is displayed; when leaving (without delay), the front is displayed for 10 seconds, and it will automatically close after 10 seconds B. When the left turn signal is turned on, the left view is displayed; when the steering is turned off, it will be turned off after a delay of 1.5 seconds; C. When the right turn signal is turned on, the right view is displayed; when the turn is turned off, it will be turned off after a delay of 1.5 seconds; D. When reversing and turning the car at the same time, reversing takes priority Button function: Mini square keyboard, FRONT, LEFT, RIGHT, BACK, corresponding to the front, left, right, and back four channels of video respectively, tap to open/close the current channel. MODE-mode key: The side view is turned on by default at startup; tap the button to switch to locked side view mode. Special reminder: 1. The power supply of the panoramic auxiliary system must be connected to the ACC power supply on the vehicle, not directly 2. The power supply of the front, rear and left and right cameras must have the output of the panoramic assist system. Power off the camera when it is not needed, this can guarantee and prolong the camera service life of the head. 3. The red DVD control trigger line of the panoramic assist system must be connected to the on-board monitor Backsight trigger line. Only in this way can the system be able to reverse or turn on the left and right lights when Automatically turn on or switch monitors without needing to automatically turn off or switch the monitor when Color: Function Black: Ground (GND) Green: Power (ACC) Red: DVD trigger line Blue: Reversing trigger line White: Right trigger line Yellow: left-sight trigger line RCA head: video output Package Included: 1 x Host 4 x Camera(Front, Rear, Left, Right) 4 x Camera Extension Cord Other accessories as picture Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. 3.Not a plug and play product, some professional skills or tools a
