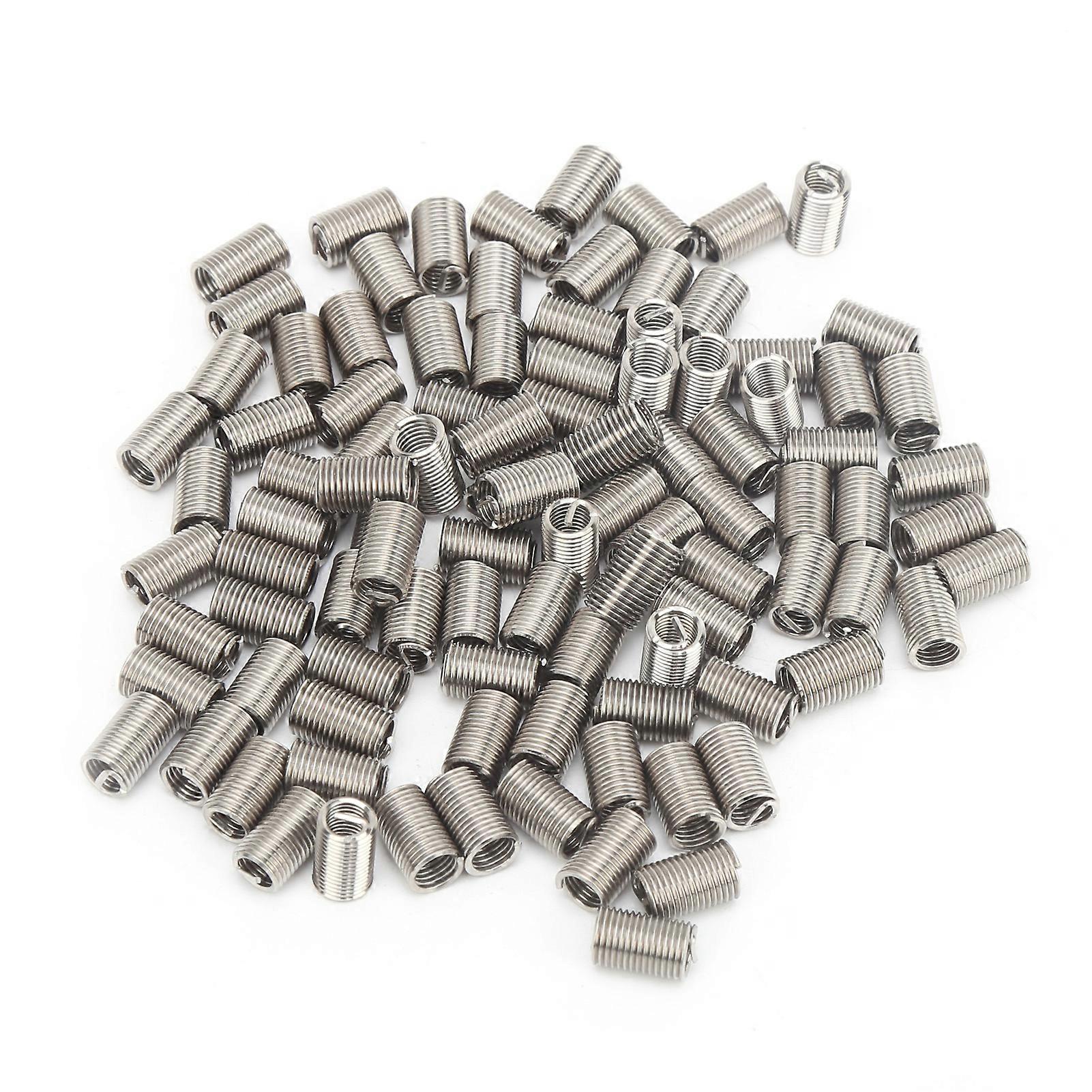

Item Type: Thread Inserts Material: SUS304 Model: M5x0.8x3D Thread Specification: M5x0.8 (mm) Length After Installation: Approx. 15mm / 0.6in Number of Turns Before Installation: 15.3 Outside Diameter Before Installation: Approx. 6.3 ~ 6.6mm / 0.2 ~ 0.3in Diameter of Drilling Drill Bit for Installation: Approx. 5.2mm / 0.2in Thread Protective Sleeve Model Specification Description: For Example: M3x0.5X1.5D, which means that after the screw set is completed, the internal thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation. Package List 100 x Thread Inserts 1Wire thread inserts are also called threaded sheaths, stainless steel threaded sleeves, wire sleeves. A new type of female threaded fasteners 2The thread inserts are made of highstrength, highaccuracy diamondshaped crosssection steel wire 3Application on lowstrength engineering materials such as aluminum alloy, zinc alloy, alloy, copper, plastic, engineering plastics, etc. will significantly improve thread strength and wear resistance 4When there is a thread processing error or a damaged internal threaded hole is repaired, the wire thread insert is used as a repairing method, economically and effectively repair the threaded hole 5Use wire thread inserts to convert between metric and inch threaded holes, convenient and fast
