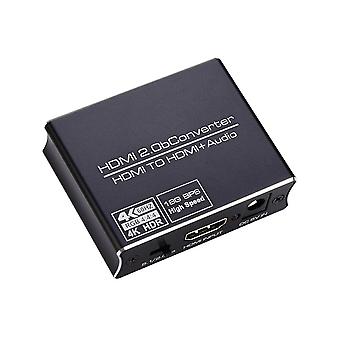

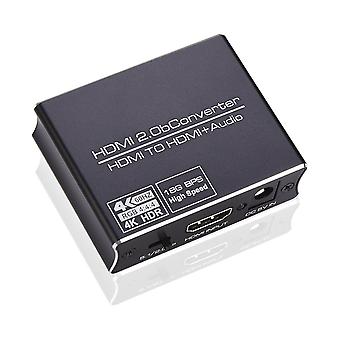

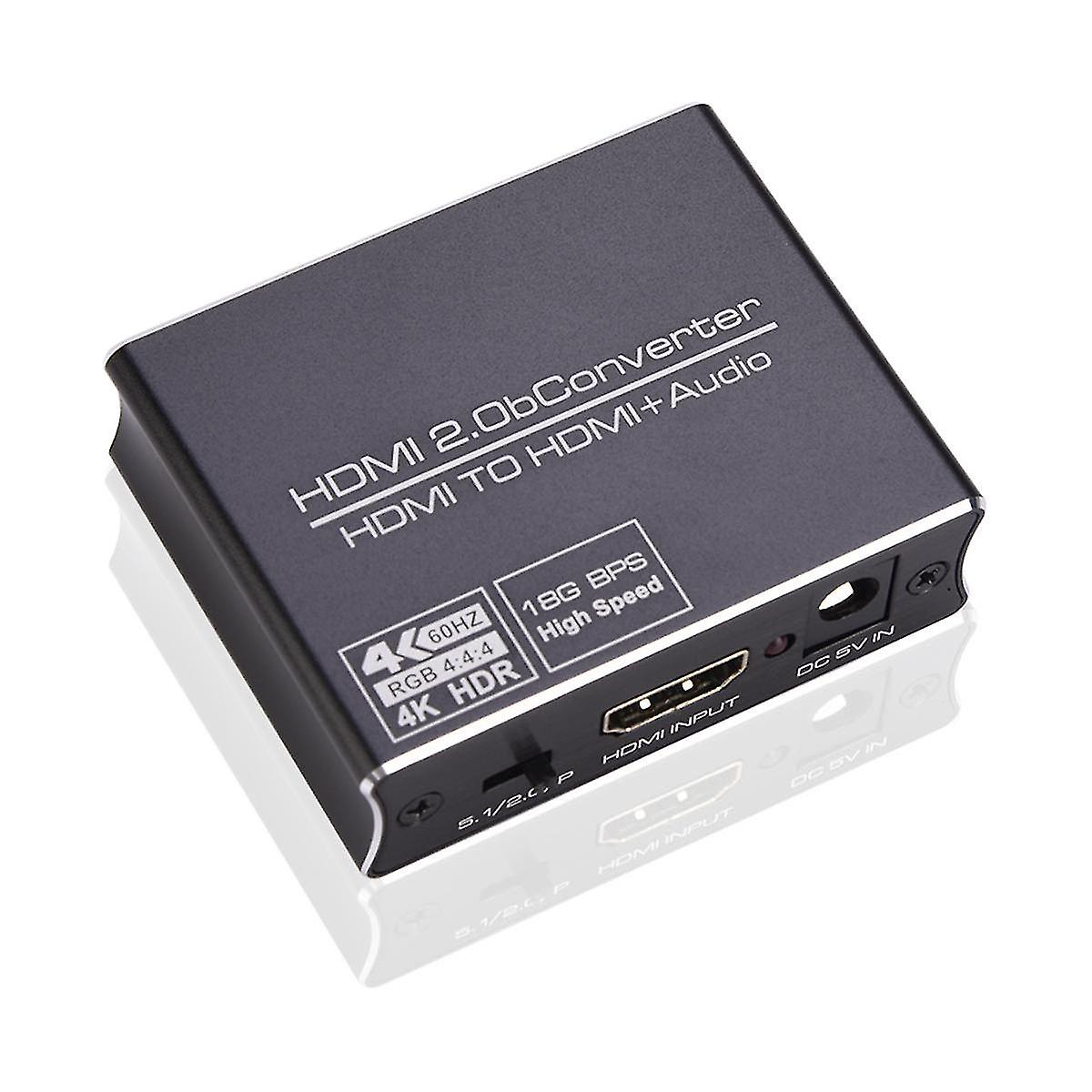

One -Compatible input converted to one -Compatible+ Audio (SPDIF+R/L)output Output audio support: SPDIF+R/L analog Audio Output Input Resolution: up to 2160p60 -Compatible to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH three kinds of audio mode LED indication: when source or sink is working, LED relative to is light.No loss of quality; Installs in minutes; Need DC5V power supply. Operating and Connecting: 1.To use one -Compatible cable to connect the HD Source with the input -Compatible port. 2.To connect the converter -Compatible output port with the HD Display. 3.To use one audio cable to connect the converter R/L port with the audio equipment. 4.To use the optical cable to connect the SPDIF port with the audio equipment. 5.To connect the converter with 5V DC power adaptor. -Compatible resolution : 2160P/1080p/1080i/720p/576p/576i/480p Audio output: L/R+SPDIF Max rate: 18Gbps Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL) Input/Output DDC signal : 5Volts p-p (TTL) Input cable distance: less than 15m AWG26 -Compatible standard cable Output cable distance: less than 20m AWG26 -Compatible standard cable Max working current: 500mA Operating Temperature range: (-15 to +55) Operating Humidity range: 5 to 90%RH (No Condensation) Colour:black Material:aluminum Package Contents: 1 x Audio Splitter 1 x USB Cable Only the above package content, other are not included. Note: Light reflection and different displays may cause the color of the item in the a little different from the real . The measurement allowed is +/- 1-3cm.
