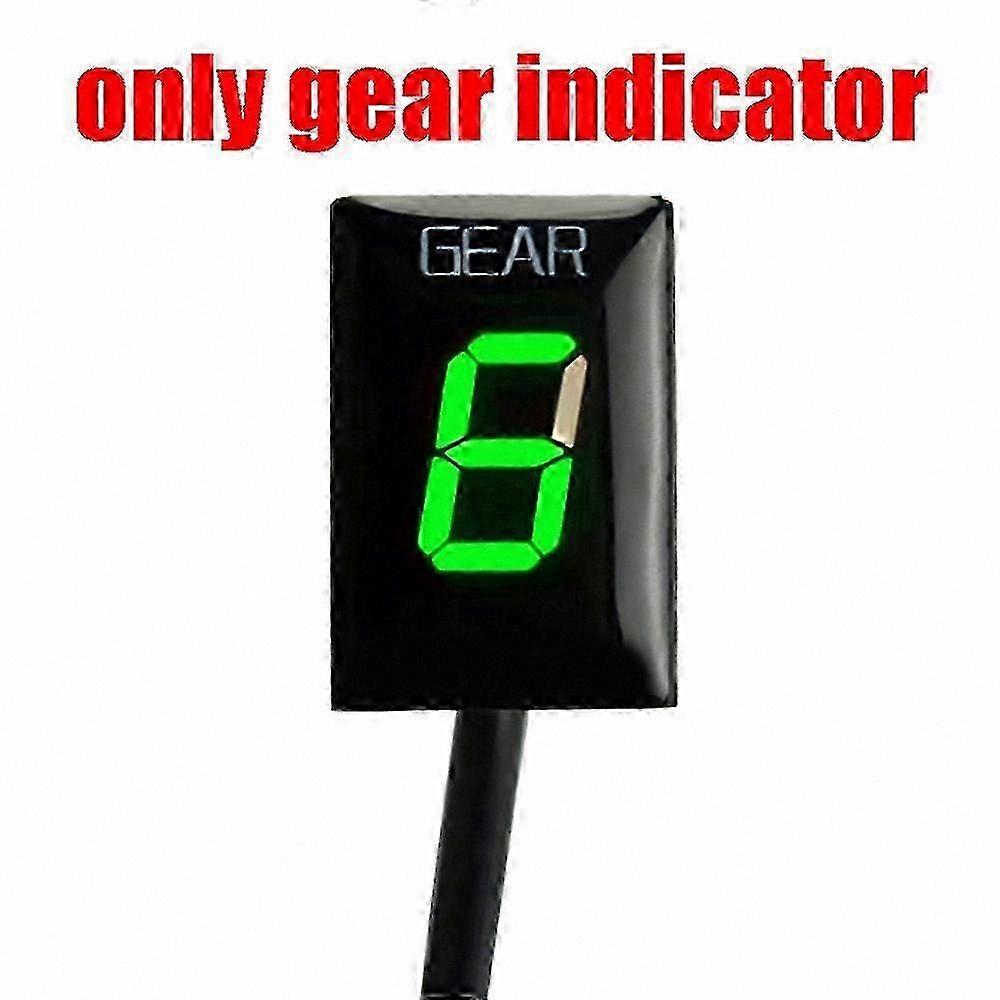

Special Note: Carefully review the product images corresponding to the options you ordered and the products described in each option before purchasing. Thank you Features: Condition: Light Color: Red 1-6 Level Waterproof Gear Display Fitment: For GSF600 Bandit 2000 - 2004 For GSF650 Bandit 2005 - 2006 For GSF1200 Bandit 2001 - 2006 For XF650 Freewind 1997 - 2004 For VL800 Intruder Volusia 2001 - 2004 For SV650 1999 - 2002 For GSX1300R Hayabusa 1999 - 2007 For GSX750F Katana 1998 - 2006 For GSX600F Katana 1998 - 2006 For GSX-R750 1996 - 2004 (Not fit 2000) For GSX-R600 1997 - 2000 K1 K2 K3 For DL650 V-Strom 2012 - 2019 For DL650XT V-Strom 1999 - 2002 For TL1000 R/S 1998 - 2003 For VL1500 Intruder 2013 - 2017 For VZR1800 2011 - 2019 For Intruder C1500 2013 - 2017 For Boulevard C90 2013 - 2019 For GSX250R 2018 2019 For GSX1000F Katana 2019 For GSX1400 2001 - 2009 For GSXR1000 2001 - 2016 For GSXS750 2015 - 2019 For GSXS750Z 2018 2019 For GSXS1000 /F/A/FA 2015 - 2019 For GSXS1000Z 2018 2019 Locate the Speed Sensor Connector: The Speed Sensor is usually mounted on the front sprocket cover, and the 3-pole black speed sensor coupler (as shown in the figure) is situated 20-40 cm (8-16 inches) away from sensor. The connector is accessible by raising the fuel tank, removing the seat or a side fairing (as shown in the figure). Confirmation: 1. Separate the Speed Sensor connector (you might need to use a small flathead screwdriver to get the connector apart). 2. After separating the Speed Sensor connector, plug in both the male and female 3-pole harness connectors. Make sure the connectors are fully seated. 3. Find the wire that comes from the Signal generator (Pickup coil / CKP sensor). If in doubt, check the bike's Service Manual or ask your dealer. 4. Connect the Green wire to this wire, using the Red wire tap connector supplied. (The green wire is connected to the crankshaft sensor signal line) Setup: You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear. - Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a center stand, you can find a long and straight road with light traffic.) - When the gear indicator screen displays "L", it means to start learning; Slowly accelerate through the throttle handle. - When the gear indicator displays "1", please select the first gear. The display is blinking faster while the unit is learning the gear. Release the clutch, and keep the RPM above idle speed. - When the gear indicator displays "2", please select the second gear. - Repeat this process until all gears are taught (5 or 6). - The unit is programmed and should indicate the gears correctly. - Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional. Reset Instructions: Turn on the key switch. When the gear indicator shows 3, turn off the key switch immediately, then turn it on again immediately. Repeat this on/off cycle six times in succession. When ignition is turned on and the display counts backwards (6 to 1), the memory has been cleared. Installation video link:
