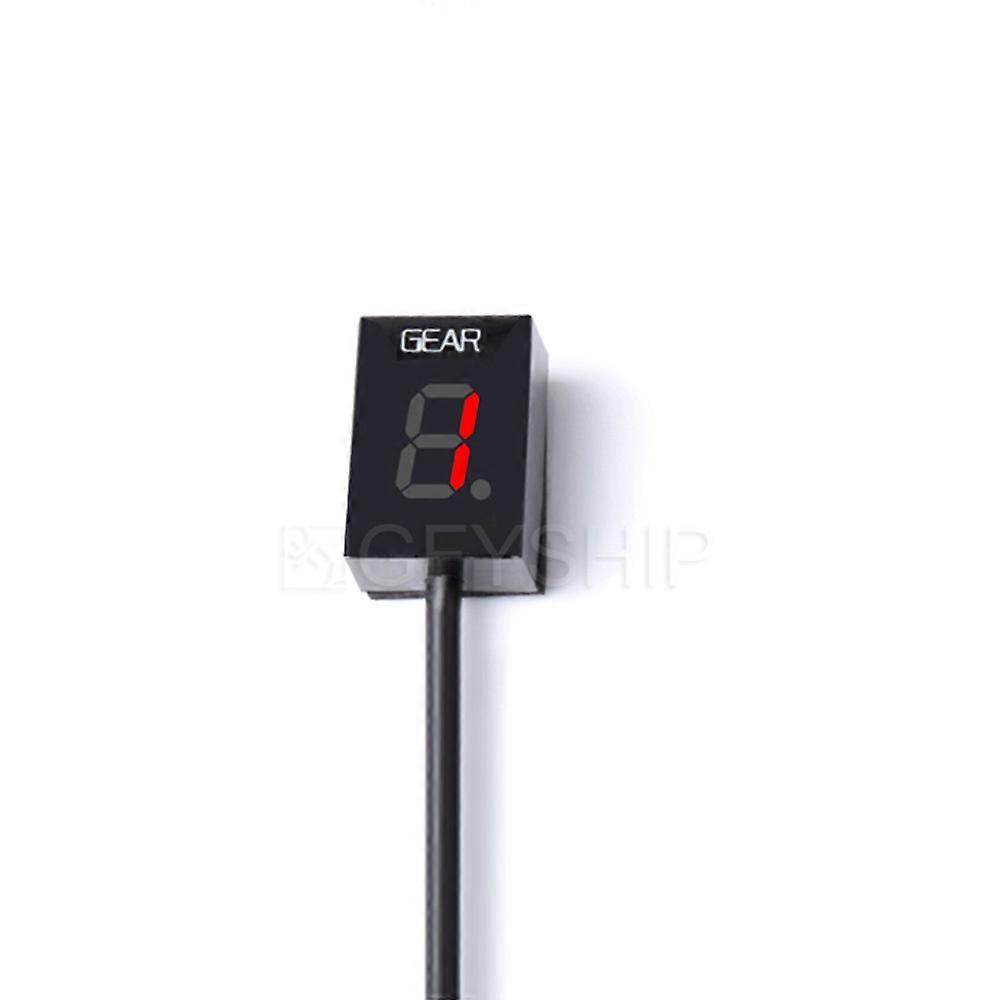

Features: Condition: Color:Black Light Color: Red/Blue/Green 1-6 Gear display Fitment: For Kawasaki W650 1999-2007 For Kawasaki Ninja ZX6R NON ABS 1998-2002 For Kawasaki ZZR600 2005-2008 Instructions Guide: Disclaimer: Do not attempt to install the product if you dont have basic mechanical skills. If in doubt, please consult with your dealer. 1. Remove the seat and raise the fuel tank. 2. Locate the Speed Sensor coupler. The Speed Sensor is mounted on the front sprocket cover, and the 3-pole black speed sensor coupler is situated 20-40 cm (8-16) away from sensor. The connector is accessible under the fuel tank (W650: behind left side cover). Confirmation: Separate the Speed Sensor coupler (you might need to use a small flathead screwdriver to get the coupler apart). Rotate the wheels while ignition is on. The speedometer should indicate 0. If so, turn the ignition off and proceed to the next step. Otherwise, if the speedometer registers a speed other than 0, you have not disconnected the correct coupler and need to look again. 3. After separating the Speed Sensor coupler, plug in both the male and female 3-pole GFYSHIP harness connectors. Make sure the connectors are fully seated. 4. Find an RPM signal wire: ZX-6R, ZZR600: Tachometer wire at the Dashboard connector or at the ECU connector Light Blue (Solid Light Blue wire) ZX-9R: Pickup coil (crankshaft sensor) connector under the fuel tank 3-pole, White triangular connector Yellow (Solid Yellow wire) W650: Pickup coil (crankshaft sensor) behind left side cover 4-pole connector Black/White (Solid Black wire with thin White stripe) 5. Peel off the black sleeve (tape), leaving about 3 cm (1.2) of this wire exposed. 6. Connect the GFYSHIP Black/Green wire to this wire, using the Red wire tap connector supplied. Setup: You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear. - Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a stand, you may setup the unit while riding. Find a long, straight road with light traffic.) - The display will blink 1. Select first gear, release the clutch, and keep the RPM above idle speed. The display is blinking faster while the unit is learning the gear. - When the display shows 2, select second gear. Repeat this process until all gears are thought (5 or 6). The unit is programmed and should indicate the gears correctly. Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional. Package Include: 1 x Gear Indicator
