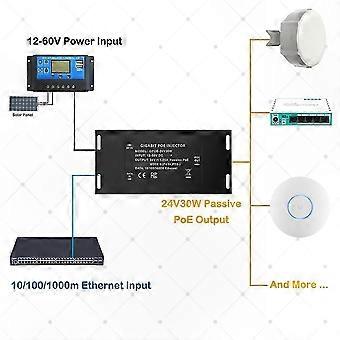

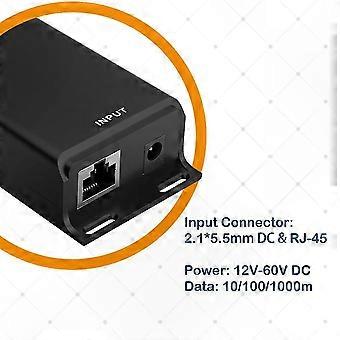

A cost-effective 12V converter solution to integrate PoE standards in your network. This device provides an economical way to supply 12V-60W power to a 24V PoE device, such as surveillance equipment or network devices. Simple plug-and-play installation with 10/100/1000 Gigabit data support, operating up to 328 feet from the power source. Compatible with existing power sources including solar or DC power, featuring a standard 2.1mm x 5.5mm DC female power input. Delivers up to 30 watts maximum output, suitable for higher power consumption devices. Instantly steps up voltage to 24V Passive PoE Mode B, with a maximum output of 30W. 24V Passive PoE output on female RJ-45 connector using Mode B (pins 4,5 + and 7,8 -). Connector Types: DC Barrel, RJ-45 Data Rate: 10/100/1000 Mbps DC Connector: 5.5 x 2.1 mm Input Voltage Range: 12 to 60V DC Maximum Power: 30 watts Maximum Output Current: 1.25A per port Operating Humidity: 5% to 90% non-condensing Operating Temperature Range: -10C to 60C Output Voltage: 24V PoE Type: Passive PoE PoE Mode/Pinout: Mode B (+4,5 -7,8) Color: Black Material: Plastic Dimensions: 107 x 51 x 25 mm Package Includes: 1 x Converter Note: Light reflection and display differences may cause slight variations in color between the image and the actual item. Measurement may vary by +/- 1-3 cm.
